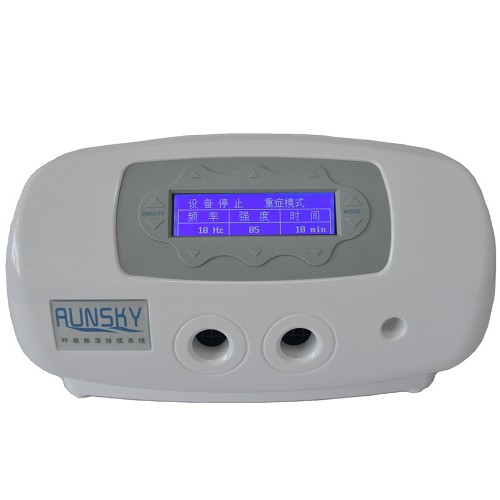

Portable Healthcare Vest Airway Clearance System Devices 220V

Portable Healthcare Vest Airway Clearance System Devices 220V
Portable Healthcare Vest Airway Clearance System Devices 220V Portable Healthcare Vest Airway Clearance System Devices 220V Portable Healthcare Vest Airway Clearance System Devices 220V Portable Healthcare Vest Airway Clearance System Devices 220V Portable Healthcare Vest Airway Clearance System Devices 220V Portable Healthcare Vest Airway Clearance System Devices 220V

Large Image :  Portable Healthcare Vest Airway Clearance System Devices 220V

Product Details:
Place of Origin: CHN
Brand Name: GH
Certification: CE
Model Number: GH372
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: 1
Packaging Details: carton
Delivery Time: 7
Payment Terms: L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000

Portable Healthcare Vest Airway Clearance System Devices 220V

Description
High Light:

220V Vest Airway Clearance System

,

Healthcare Vest Airway Clearance System

,

Portable airway clearance devices

 Portable Healthcare Vest Airway Clearance System Cough Assist For Child& Adult

Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
GH
Model Number:
RKPT-100D
Instrument classification:
Class II
Warranty:
1 Year
After-sale Service:
Online technical support
Material:
ABS
Application site:
Hospital
Intended for:
Children&Adult
Equipment size:
373*217*214 (mm)
Equipment weight:
≤7.8kg
Output pressure:
>10kPa
Temperature:
0℃~+40℃
Humidity:
30~80%
Supply voltage:
AC 220V 50Hz
Power:
≤ 260VA
Supply Ability
Supply Ability
10000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Foam carton
Port
Qingdao,Tianjin

What is the HFCWO?

The inflatable chest strap and the air pulse host are connected by a tube, which quickly inflates and deflates, squeezes and relaxes the chest wall. This process is called High-frequency chest wall oscillation system expectoration (HFCWO) technology. Gently squeeze and relax the chest wall to produce vibrations, which can loosen secretions and change the physical properties of mucus . The positive pressure acting on the chest wall produces exhaled air. After the pressure is released, an inspiratory airflow is produced, which changes the shear force on the mucus surface. Stimulate the oscillation frequency of cilia through chest wall oscillation.

Compared with other methods


Method
HFCWO
Manual knocking
Vibration expectoration machine
Principle
Vibration , Airflow
Vibration
Vibration
Posture requirements
No restrictions on positions
Special techniques and positions
Special techniques and positions
Patient requirements
No position required, awake, coma, easy to tolerate
side-lying, sitting position, not easy to tolerate Prone
side-lying, sitting position, not easy to tolerate Prone
Operability
easy
difficult
difficult
The operator
The operation is simple, no special training is required, the machine automatically expects sputum, and the expectoration effect is not affected by individual differences of operators, has a wide range of indications, and the equipment is maintenance-free and
low in cost.
Requires professionalism, patience, love, the operator is prone to fatigue, affected by mood, physical strength, etc., the treatment effect can be reduced due to individual differences in the operator, and sometimes the family members expect to
expectoration-the effect is even worse.
Professionalism is required, the operator is prone to fatigue, and the treatment effect can be reduced due to individual differences in the operator. Long-term operation is prone to arm paralysis, long-term occupation of labor, and low work
efficiency.




How does the equipment work ?

The equipment includes an air pulse host, an airbag vest (chest strap) and an air flow pipeline. The main unit inflates and deflates quickly, and the patient’s chest wall is vibrated by the airbag vest (chest strap), which makes the viscous sputum loose, fall off, dilute, and gather, and at the same time stimulate the cilia on the airway wall to swing, and the sputum is transfer to the trachea and oral cavity.



Ø1.The maximum output pressure of the expectoration system should be greater than 10kPa; Ø2.The maximum oscillation frequency of the expectoration system is 20Hz, the frequency step is continuously adjustable at 1Hz and the error should not be greater than 1Hz; Ø3.The working time of the expectoration system is adjustable within the range of 1~99min, and the timing error is less than ±5%; Ø4.The expectoration system can set various parameters, including working mode, intensity and frequency, etc.; Ø5.The maximum noise produced by the expectoration system during normal operation should be less than 85dB (A); Ø6.The sputum discharge system will give an alarm with a red light when the fan malfunctions or other causes the temperature inside the machine is higher than 85°C.

Application





APPLICABLE SITUATION
1.Too much sputum in the airway, too thick, and weak cough 2.Establish artificial airway and need mechanical ventilation 3.Patients with acute exacerbation of chronic obstructive pulmonary disease, atelectasis, or abdominal infection 4.Those with bronchiectasis, cystic pulmonary fibrosis and excessive sputum expectoration 5.Aged, frail, and bedridden for a long time 6.For patients after surgery, those who have difficulty breathing or coughing due to pain 7.Pediatric pneumonia, coma, myasthenia gravis, occupational lung disease

DEPARTMENTS

ICU Respiratory Department Geriatrics Emergency Department Thoracic surgery Pediatrics Neurology




Airbag vest size


Name
model
bust(cm)
height (cm)
weight (kg)
remark
Removable vest
XS
65
60-120
10-25
Children's standard
M
100
150-165
40-60

L
120
165-180
60-80
Adult standard
XL
140
170-190
80-100

Inflatable vest
XS
65
60-120
15-25
Children's standard
S
85
120-150
25-40
Children's standard
M
100
150-165
40-60

L
120
165-180
60-80
Adult standard
Waistband
M
60



L
125


Adult standard
