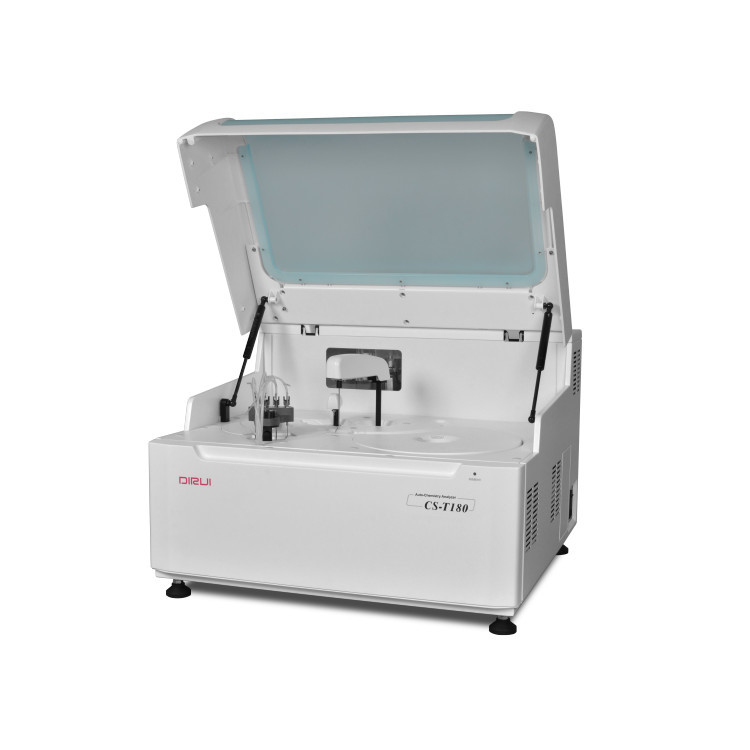

Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm

Certification
China Hefei wencheqite Trade Co., Ltd certification
China Hefei wencheqite Trade Co., Ltd certification
I'm Online Chat Now

Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm

Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm
Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm

Large Image :  Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm

Product Details:
Place of Origin: CHN
Brand Name: GH
Certification: CE
Model Number: CS-T180
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: 1
Packaging Details: carton
Delivery Time: 7
Payment Terms: L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000

Clinical Laboratory Medical Equipment Fully Automatic Chemistry Analyzer 340nm

Description
Product Name: Lab Medical Equipment TCO2 Sensor Electrolyte Analyzer,Healthy Research Medical Laboratory Equipment Instrument Classification: Class II
Warranty: 14 Month Application: Hosipital,Lab
Language: English Or Optional
High Light:

340nm Laboratory Medical Equipment

,

Clinical Laboratory Medical Equipment

,

CE Fully Automatic Chemistry Analyzer

 New Laboratory Equipment Clinical fully automatic chemistry Analyzer

Overview
Quick Details
Type:
Biochemical Analysis System, Biochemical Analysis System
Brand Name:
GH
Model Number:
CS-T180
Place of Origin:
Jilin, China
Instrument classification:
Class II
Warranty:
1 Year, 18 months
After-sale Service:
Online technical support
Product name:
Automatic Chemistry Analyzer
Throughput:
180T/h, 540T/h with ISE
Certificate:
ISO13485,CE
OEM:
Accepted
Supply Ability
Supply Ability
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton or wooden case
Port
Dalian Port Shenzhen Port



TECHNICAL PARAMETERS
Throughput
Colorimetric items: Constant-speed 180 tests/ hour,
ISE items (optional): Maximum 540 tests/ hour.
Wavelengths
340nm, 380nm, 405nm, 450nm, 480nm, 505nm, 546nm, 570nm, 600nm,660nm, 700nm, 800nm.
Reaction temperature
37±0.1℃
Test method
1-point endpoint assay, 2-point endpoint assay, 2-point rate assay, rate A assay
Reagent and sample position
Maximum 80 reagent/sample positions, with refrigeration
Reagent volume
10μL~300μL, step 0.1μL
Sample and reagent cooling system
2℃~12℃
Volume of reagent bottle
20mL,35mL,70mL
Barcode recognition system
1 built-in bar code reader (optional)
Probe liquid level sensor
Integrated with probe
Sample type
Serum, plasma, urine, ascites, cerebrospinal fluid
Sample volume
2μL~35μL, step 0.1μL
Specifications of test tube
Φ12mm×75mm, Φ12mm×100mm, Φ13mm×75mm, Φ13×100mm. Standard cup, original blood collection tube.
Cuvette type
Discrete type, plastic
Optical path of cuvette
5mm
Reaction position
8 sets, 7 for each set, totally 56 positions
Reaction time
13min
Reaction solution volume
100μL~360μL
Light source
20W/12V quartz-halogen lamp with a long service life
Absorbance range
0~5.7Abs
Absorbance linear Range
0~3.5Abs
Power voltage
100V-240V~ 50/60Hz
Environmental temperature
15℃ ~32℃
Relative humidity
Not greater than 75%
Atmospheric pressure
75kPa~106kPa
Weight
100kg
Boundary dimension (mm)
744×703×530(L×W×H)
Rated power
600VA
