Hybrid Clinitek Automated Urinalysis Machine Analyzer

Certification
China Hefei wencheqite Trade Co., Ltd certification
China Hefei wencheqite Trade Co., Ltd certification
I'm Online Chat Now

Hybrid Clinitek Automated Urinalysis Machine Analyzer

Hybrid Clinitek Automated Urinalysis Machine Analyzer
Hybrid Clinitek Automated Urinalysis Machine Analyzer Hybrid Clinitek Automated Urinalysis Machine Analyzer Hybrid Clinitek Automated Urinalysis Machine Analyzer

Large Image :  Hybrid Clinitek Automated Urinalysis Machine Analyzer

Product Details:
Place of Origin: CHN
Brand Name: GH
Certification: CE
Model Number: FUS-1000
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: 1
Packaging Details: carton
Delivery Time: 7
Payment Terms: L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000

Hybrid Clinitek Automated Urinalysis Machine Analyzer

Description
Type: Urine Analysis System Instrument Classification: Class II
Warranty: 14 Month Application: Routine Urine Test,Hosipital,Lab,Human And Veterinary
Name: Laboratory Urinalysis Language: English Or Optional
Usage: Medical,chemical,laboratory,education Product Name: Healthy Research Medical Laboratory Equipment
High Light:

Hybrid automated urinalysis machine

,

laboratory automated urinalysis machine

,

Clinitek Urinalysis Analyzer

 Full automatic urinalysis hybrid analyzer clinical testing machines

Overview
Quick Details
Type:
Urine Analysis System, Urine Analysis System
Brand Name:
GH
Model Number:
FUS-1000, FUS-1000
Place of Origin:
Jilin, China
Instrument classification:
Class II
Warranty:
1 Year, 18 months
After-sale Service:
Online technical support
Product name:
FUS-1000 Urinalysis Hybrid Analyzer
Brand:
DIRUI
Throughput:
60 T/H
Certificate:
ISO13485,CE
OEM:
Accepted
Supply Ability
Supply Ability
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton or wooden case
Port
Dalian Port Shenzhen Port

 Hybrid Clinitek Automated Urinalysis Machine Analyzer 0

TECHNICAL PARAMETERS
Certificate
Meeting the CE requirement
Product Description

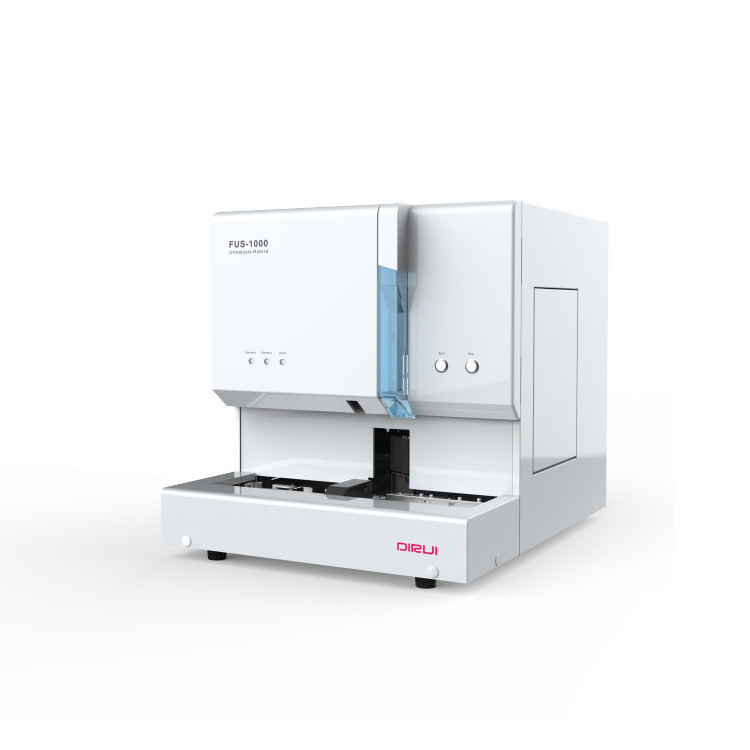

FUS-1000 Urinalysis Hybrid enables routine analysis as well as urine formed element analysis and counting through one sampling.
Throughput
Formed elements analysis + Chemistry analysis: 60t/h (maximum);
Formed elements analysis: 60t/h (maximum);
Chemistry analysis: 60t/h
Principle
Formed element testing method: : Flow Type Micro-imaging Technology
Chemistry testing method: Photoelectric colorimetry
SG: Refractive Gravimeter Method
Turbidity: Scattering Method
Color: RGB Primary Colors Method
(SG/Turbidity/Color needs SG unit which is optional)
Images
950 real images and 200 times magnification
Formend elements items
12 items
Red blood cell (RBC), white blood cell(WBC), white blood cell cluster (WBCC), squamous epithelial cell (SQEP), non-squamous epithelial cell (NSE), hyaline cast (HYAL), pathologic cast(UNCC), bacteria (BACT),
yeast (BYST), unclassified crystal (UNCX), sperm (SPRM) and mucous strands (MUCS).
Chemistry items
14 items maximum
Urobilinogen (UBG), bilirubin (BIL), ketone body (KET), blood (BLD), protein (PRO), nitrite (NIT), leukocyte (LEU), glucose (GLU),
pH value (pH), specific gravity (SG), vitamin C (VC) (optional), microalbumin (MALB) (optional), creatinine (Cr) (optional) and
urinary calcium (Ca) (optional).
Physical items
3 items
Specific gravity (SG) (optional), turbidity (optional), and color (optional).
Calculate items
ACR
Wavelengths
525 nm, 572 nm, 610 nm, 660 nm
Sample type
urine
Sample volume
Min. volume: 3mL non-centrifuged urine; aspiration volume: about 2mL
Sample capacity
50 samples
Maximum capacity of strip sealed bin
200 strips
Maximum capacity of waste strip bin
400 strips
Door control function
Y
Strip onboard stability
3 days (24 h)
Sample bar code identification
A built-in bar code reader, automatic scanning of sample bar code;
An external bar code reader, manual scanning of bar code (optional).
Port
Data communication interface: bidirectional RS-232 communication interface LIS interface: internet access LIS and serial port LIS
LIS system
Both-way communication with LIS system is supported
Test results storage capacity
≥100,000 data
Weight
Host: 60kg
Dimensions (L×W×H)
Host: 520mm×702mm×566mm
Power consumption
Host: 300VA
Computer: 400VA (optional)
Working temperature
10℃~30℃
Working humidity
not greater than 75%
Atmospheric pressure
75kPa~106kPa
Supply voltage
100V-240V~ 50/60Hz

Hybrid Clinitek Automated Urinalysis Machine Analyzer 1Hybrid Clinitek Automated Urinalysis Machine Analyzer 2Hybrid Clinitek Automated Urinalysis Machine Analyzer 3
