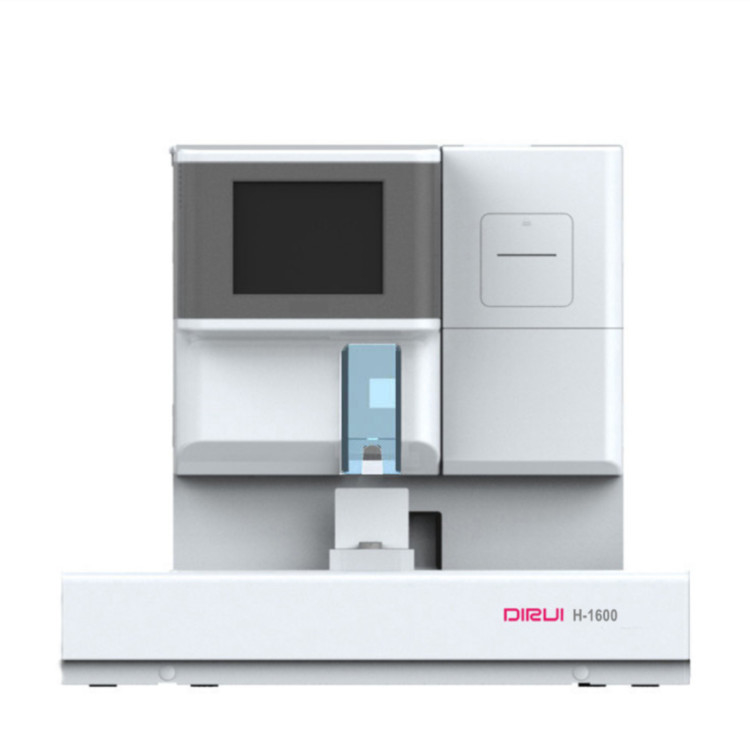

Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer

Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer
Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer

Large Image :  Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer

Product Details:
Place of Origin: CHN
Brand Name: GH
Certification: CE
Model Number: H-1600
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: 1
Packaging Details: carton
Delivery Time: 7
Payment Terms: L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000

Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer

Description
Type: Examination Therapy Equipments Product Name: Medical Supplies And Equipment
Instrument Classification: Class II Warranty: 14 Month
Application: Hosipital,Lab,Human And Veterinary Color: White
Language: English Or Optional Reagent: Open System
Usage: Medical,chemical,laboratory,education
High Light:

Multichannel Laboratory Medical Equipment

,

H 1600 Laboratory Medical Equipment

,

Urine Sediment Analyzer

 Best selling quality multi channel Clinical H-1600 fully automatic urine analyzer

Overview
Quick Details
Type:
Urine Analysis System, Urine Analysis System
Brand Name:
GH
Model Number:
H-1600, H-1600
Place of Origin:
Jilin, China
Instrument classification:
Class II
Warranty:
1 Year, 18 months
After-sale Service:
Online technical support
Product name:
H-1600 Urine Analyzer
Brand:
DIRUI
Throughput:
240 samples/hour
Certificate:
ISO13485,CE
OEM:
Accepted
Supply Ability
Supply Ability
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton or wooden case
Port
Dalian Port Shenzhen Port

 Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer 0

TECHNICAL PARAMETERS
Test principle
Test principle of chemistry items: Photoelectric colorimetry.
Test principle of physical and chemical items: Refraction method, transmittance absorbance.
Test items
Urobilinogen (UBG), bilirubin (BIL), ketone body (KET), blood (BLD), protein (PRO), nitrite (NIT), leukocyte (LEU), glucose (GLU),
pH value (pH), specific gravity (SG), vitamin C (VC) (optional), microalbumin (MALB) (optional), creatinine (Cr) (optional) and
urinary calcium (Ca) (optional).
Physical and chemical test items
Specific gravity (optional), turbidity (optional), color (optional) and conductivity (optional).
Test speed
240 samples/ hour
Sample type
Urine
Sample volume
Chemistry analysis item: Min. volume: 1.6mL non-centrifuged urine; aspiration volume: about 0.6mL; Chemistry analysis item +
physical and chemical item: Min. volume: 3.0mL non-centrifuged urine; aspiration volume: about 2.0mL.
Volume of sample to be tested
60 samples. The volume can be extended to 320 samples if pre-storage tray and reclaiming tray modules are installed.
Volume of strip bin
A single strip bin holds at least 300 strips
Maximum capacity of waste strip bin
400 strips
Temperature and humidity monitoring function of strip bin
It has internal temperature and humidity monitoring function and it will alarm if they exceed the set range.
Strip carrying stability
3 days
STAT function
Special STAT position, available for sample test at any time
Sample barcode identification
Built-in barcode reader (laser), sample barcode can be read automatically An external barcode reader (red light),manual scanning
of barcode (optional).
LIS port
Serial port LIS
Connection with LIS system
Bidirectional communication with LIS system is supported
Test results storage capacity
Not less than 100,000 pieces of data
Weight
67kg; 102kg if pre-storage tray and reclaiming tray modules are installed
Power
200 VA
Size (L×W×H)
680 mm×700 mm×590 mm 1360 mm×900 mm×590 mm if pre-storage trayand reclaiming tray modules are installed
Ambient temperature
10 ~30 ℃
Relative humidity
below 70%
Atmospheric pressure
75kPa~106kPa
Supply voltage
100-240V~ 50/60Hz
Intensity of light
prevent direct sunlight



Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer 1Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer 2Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer 3
