BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer

Certification
China Hefei wencheqite Trade Co., Ltd certification
China Hefei wencheqite Trade Co., Ltd certification
I'm Online Chat Now

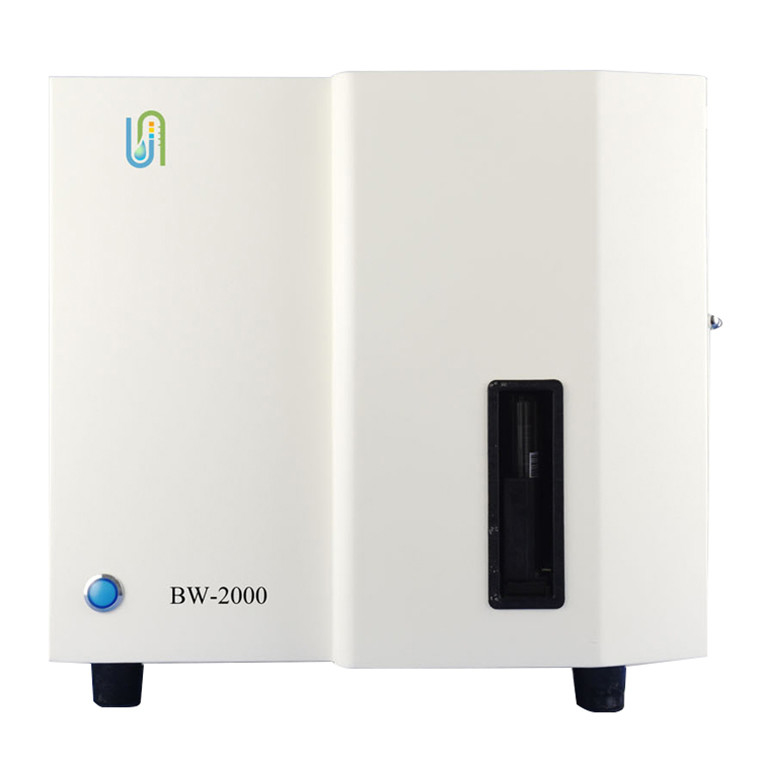

BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer

BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer
BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer

Large Image :  BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer

Product Details:
Place of Origin: CHN
Brand Name: GH
Certification: CE
Model Number: GH BW2000
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: 1
Packaging Details: carton
Delivery Time: 7
Payment Terms: L/C, D/A, D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000

BW2000 Veterinary Urine Analyzer For Metabolites Automatic Urine Test Strip Analyzer

Description
High Light:

BW2000 Veterinary Urine Analyzer

,

CE Veterinary Urine Analyzer

,

Automatic Urine Test Strip Analyzer

GHBW2000 urine analyzer for metabolites automatic urine strip analyzer
Overview
Quick Details
Type:
Urine Analysis System
Brand Name:
GH
Model Number:
GHBW2000
Place of Origin:
Shandong, China
Instrument classification:
Class II
Warranty:
1 Year
After-sale Service:
Online technical support
Product name:
Urine Sediment Analysis System
Application:
Hosipital
Function:
Urine Analysis
Certificate:
CE ISO
Display:
LCD
Language:
Enlglish
Feature:
Emotional Analysis
Item:
Body Element Measurer
Keywords:
automatic urine strip analyzer
Supply Ability
Supply Ability
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
In general we use the Standard Export Cartons and wood box.
Also we can packing the products based on customers' demand.
Port
Tianjin or Qingdao
BW-2000 SPECIFICATION

Inspection principle: Using machine vision technology: automatic identify, classify and count the formed elements in urine with
microscope automatic morphological methods.

Test items: Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC ,wbcc, Pus cell ,Hyaline Cast ,Granular Cast, WBC Cast ,Squamous
Epithelial cell ,Normal Epithelial Cell ,Sperm ,Calcium Crystal ,Oxalate Crystal Bacteria ,Yeast ,Amorphous Urates ,Mucus etc.

Test speed: 30 samples/hour.

Sample quantity: Minimum urine volume 2ml, minimum injection volume 0.5ml

Sample processing: The sample can be directly tested without centrifugation.

Flow Cell:High accuracy, single channel flow cell(test channel)

Sampling Method: Automatic trail injection, 10 samples on the machine at the same time.

Accuracy: ≥ 95%

Repeatability test: CV < 10%

Carrying pollution rate: < 0.05%

Report form: xx unit/ul, HPF&LPF etc. international universal quantitative unit, comprehensive graphic report of dry chemical
analysis and urine formed elements quantitative analysis

Dimensions: 380mm x 286 mm x 363mm(L x W x H)

Net Weight: 15kg

Data Interface: Two-way communication interface, can be connected with dry chemistry analyzer, printer and hospital management
system

Power Requirements: AC 220V土10%, 50Hz

Standard configuration: Build-in CPU,including mouse, key board

【Specification】
Automatic trail suction, 10 samples on machine at the same time, easily operate.

Auto focus. Adjust focal length of microscope automatically to make sure a clear and complete sample picture.
Sample can be used directly without centrifugation and pre-handled, all of the sample injection, mixing, sampling and
sedimentation are automatic.

Identify the test sediments and count quantities of the pictures automatically

High accuracy flow cell to insure a stable & precise sample-suction and normalize the test result.
High accuracy suction-sample needle, choicely pipelines and valves to insure the high stability of the pipeline; high-efficiency
auto clearance function to insure clear the inside & outside of the needle efficiently, which will avoid across contamination.

The machine owns self-learning function.
The more time it is be used, the higher identify rate it becomes.
The machine can be connected with dry chemistry analyzer and provide a comprehensive report contains urine dry chemistry and urine
sediment test
If you need other medical supplies, please feel free to contact us! We will do our best to provide you good service. Welcome to consult! Chat now!
Specification
item
value
Type
Urine Analysis System
Brand Name
GH
Model Number
GHBW2000
Place of Origin
China

Shandong
Instrument classification
Class II
Warranty
1 Year
After-sale Service
Online technical support
Product name
Urine Sediment Analysis System
Application
Hosipital
Function
Urine Analysis
Certificate
CE ISO
Display
LCD
Language
Enlglish
Feature
Emotional Analysis
Item
Body Element Measurer
Keywords
Urine Sediment Analysis System
