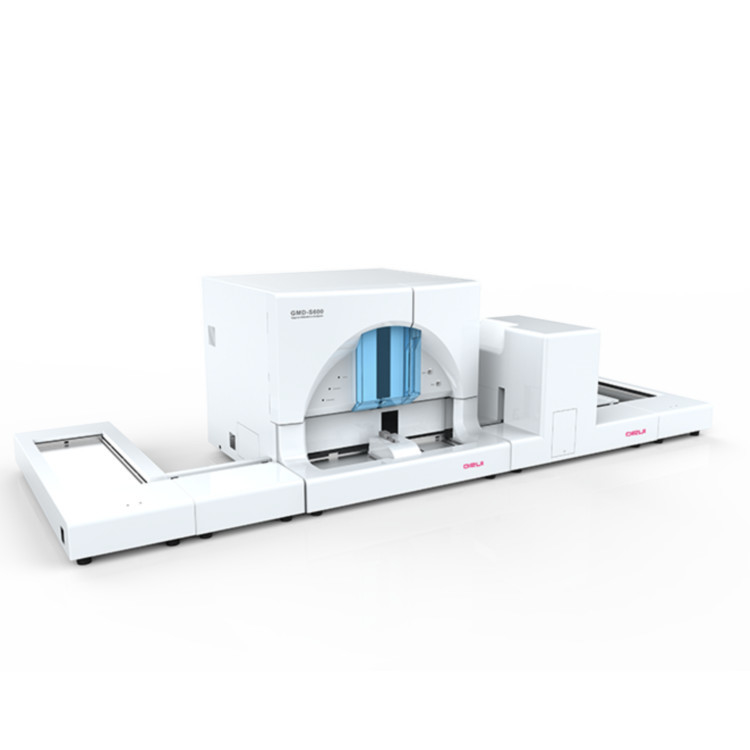

Factory direct sales vaginal infections analyzer GMD-S600 auto vaginal infections analyzer

Product Details

Place of Origin: CHN

Brand Name: GH

Certification: CE

Model Number: GHGMD-S600

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: 1

Packaging Details: carton

Delivery Time: 7

Payment Terms: L/C, D/A, D/P,T/T, Western Union, MoneyGram

Supply Ability: 50000

Get Best Price
Product Details
Highlight:
Type:
Genes & Life Science Equipments
Instrument Classification:
Class II
Warranty:
14 Month
Application:
Lab
Color:
White
Language:
English Or Optional
Usage:
Medical,chemical,laboratory,education
Product Name:
Lab Medical Equipment TCO2 Sensor Electrolyte Analyzer,Healthy Research Medical Laboratory Equipment
Type:
Genes & Life Science Equipments
Instrument Classification:
Class II
Warranty:
14 Month
Application:
Lab
Color:
White
Language:
English Or Optional
Usage:
Medical,chemical,laboratory,education
Product Name:
Lab Medical Equipment TCO2 Sensor Electrolyte Analyzer,Healthy Research Medical Laboratory Equipment
Product Description

Factory direct sales vaginal infections analyzer GMD-S600 auto vaginal infections analyzer

Overview
Quick Details
Type:
Bacteria Analysis System, Bacteria Analysis System
Brand Name:
GH
Model Number:
GHGMD-S600,
Place of Origin:
Jilin, China
Instrument classification:
Class II
Warranty:
1 Year, 18 months
After-sale Service:
Online technical support
Product name:
GMD-S600 Vaginal Infections Analyzer
Brand:
DIRUI
Throughput:
60 samples/hour(batch test)
Certificate:
ISO13485,CE
OEM:
Accepted
Supply Ability
Supply Ability
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton or wooden case
Port
Dalian Port Shenzhen Port



1Sediment testing:
method Flow type image technology
Sediment analysis items:
RBC, WBC, squamous epithelial, clue cell, mould, trichomonad, lactobacillus and miscellaneous bacteria
Chemistry analysis items:
Neuraminidase (SNa), leucocyte esterase (LE), hydrogen peroxide (H2O2),β-glucuronidase (GUS) (optional),
n-acetyl hexosaminidase (NAG) (optional),proline aminopeptidase (PIP) (optional), lactic acid (LA) (optional), oxidase
(OX)(optional) and pH (optional)
Test speed:Sediment analysis mode:
60 samples/ hour
Chemistry analysis mode: 60 samples/ hour
Combined sediment+chemistry analysis mode: 60 samples/ hour
Sample type :
Vaginal secretions
Dyeing function:
If automatic dyeing is selected, the Analyzer will dye the sediment of RBC, WBC,squamous epithelial, clue cell
and trichomonad in samples automatically.
temperature
Automatic temperature control range of chemistry testing area: 37℃±2℃;
Automatic temperature control range of sediment dyeing cell: 37℃±1℃.
Volume of samples to be tested:
50 samples, an appropriate cover opening module is selected, the sample can open the cover automatically
270 samples, appropriate pre-storage tray module and reclaiming tray module are selected
Maximum capacity of strip bin:
200 strips
Maximum capacity of waste strip bin:
400 strips
Emergency treatment function:
Special position for emergency
Sample bar code identification:
A built-in bar code reader, automatic scanning of sample bar code;
An external bar code reader, manual scanning of bar code (optional).
Light source:
Full spectrum of visible light
Camera type
Color camera
Port :
Data communication interface: bidirectional RS-232 communication interface LIS interface; internet access LIS and serial port LIS
Connection with LIS system:
Both-way communication with LIS system is supported
Test results storage:
capacity ≥100,000 data
Weight:
Host: 86kg
When the host is connected with the cover opening module: 100kg
When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 132kg
cover opening module:
Dimensions (L×W×H):
Host: 688mm×779mm×584mm
When the host is connected with the cover opening module: 1177mm×779mm×584mm
When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module:
2055mm×897mm×584mm
Power consumption:
Host: 390VA
When the host is connected with the cover opening module: 430VA
When the host is connected with the cover opening module, pre-storage tray and reclaiming tray and reclaiming bridge module: 480VA
Computer: 300VA
